Outdoor LED Display Screen with IP65 Waterproof 1920Hz-3840Hz Refresh Rate and 100000 Hours Life Span for Digital Signage Billboard
Productdetails:
| Plaats van herkomst: | Guangdong, China |
| Merknaam: | LEDKING or OEM & ODM |
| Modelnummer: | RO-P8 P10 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | CN¥2,363.01-2,500 |
|
Gedetailleerde informatie |
|||
| Pixelafstand: | 8 mm, 10 mm | Pixeldichtheid: | 15625 punten/m2, 10000 punten/m2 |
|---|---|---|---|
| pixelconfiguratie: | 1R1G1B | Maximaal stroomverbruik: | 28W, 40W, 45W |
| Paneelgewicht: | 0,3 kg, 0,5 kg, 0,55 kg | Kastgrootte: | 768 mm * 1280 mm * 140 mm, 960 mm * 960 mm * 90 mm |
| Resolutie van het kabinet: | 96 punten * 160 punten, 120 punten * 120 punten, 96 punten * 96 punten | Het schermvoeding: | AC110V/220V - 5V40A, AC110V/220V - 5V60A, AC220V - 5V60A |
| Maximale stroomcapaciteit: | 1020W/m2, 976W/m2, 1300W/m2 | Vernieuwingsfrequentie: | 1920-3840 HZ/S |
| Helderheid: | 5000 mcd/m2, 4800 mcd/m2 | BESTE KIJKAFSTAND: | 8-50M, 10-50M |
| Bedrijfstemperatuur: | -10°C~45°C | Bedrijfsvochtigheid: | 10-90% |
| IP-beschermingsindex: | IP65 | ||
| Markeren: | IP65 Waterproof Outdoor LED Display Screen,1920Hz-3840Hz Refresh Rate LED Video Wall,100000 Hours Life Span Digital Signage Billboard |
||
Productomschrijving
Outdoor LED Display Screens - P8 & P10 Models
High-performance waterproof outdoor LED signage solutions designed for digital advertising displays, billboards, and informational signage.
Product Specifications
Module Specifications
| Item | Outdoor P8 | Outdoor P8 | Outdoor P10 |
|---|---|---|---|
| Panel Dimension | 256mm(W) × 128mm(H) | 320mm(W) × 160mm(H) | 320mm(W) × 160mm(H) |
| Pixel Pitch | 8mm | 8mm | 10mm |
| Pixel Density | 15625 dot/m² | 15625 dot/m² | 10000 dot/m² |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Specification | SMD3535 | SMD3535 | SMD3535 |
| Pixel Resolution | 32 dot × 16 dot | 40 dot × 20 dot | 32 dot × 16 dot |
| Max Power Consumption | 28W | 40W | 45W |
| Panel Weight | 0.3KG | 0.5KG | 0.55KG |
Cabinet Specifications
| Item | Outdoor P8 | Outdoor P8 | Outdoor P10 |
|---|---|---|---|

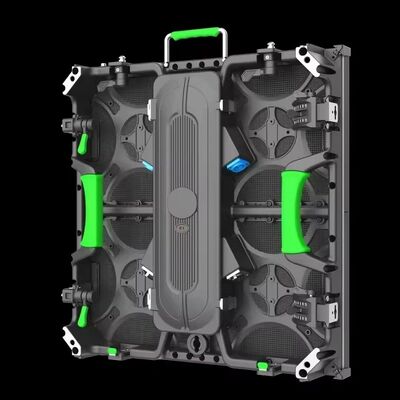

| Cabinet Size | 768mm × 1280mm × 140mm, back service | 960mm × 960mm × 90mm | 960mm × 960mm × 90mm |
| Cabinet Resolution | 96 dot × 160 dot | 120 dot × 120 dot | 96 dot × 96 dot |
| Quantity of Panel | 30pcs | 18pcs | 18pcs |
| Hub Connecting | HUB75-E | HUB75-E | HUB75-E |
| Cabinet Material | Simple iron / waterproof iron cabinet | Die-casting aluminum cabinet | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service | Front/Back service | Front/Back service |
| Best Viewing Angle | 140°/120° | 140°/120° | 140°/120° |
| Screen Power Supply | AC110V/220V - 5V40A | AC110V/220V - 5V60A | AC220V - 5V60A |
| Max Power Capacity | 1020W/m² | 976W/m² | 1300W/m² |
| Average Power | 510W/m² | 488W/m² | 650W/m² |
Technical Specifications
| Item | Outdoor P8 | Outdoor P8 | Outdoor P10 |
|---|---|---|---|
| Driving IC | ICN 2037 / 2153 | ICN 2037 / 2153 | ICN 2037 |
| Scan Rate | 1/4S | 1/5S | 1/2S |
| Refresh Frequency | 1920-3840 HZ/S | 1920-3840 HZ/S | 1920 HZ/S |
| Display Color | 4096×4096×4096 | 4096×4096×4096 | 4096×4096×4096 |
| Brightness | 5000mcd/m² | 4800mcd/m² | 5000 mcd/m² |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Control Distance | < 100M | < 100M | < 100M |
| Best Viewing Distance | 8-50M | 8-50M | 10-50M |
| Operating Temperature | -10°C to 45°C | -10°C to 45°C | -10°C to 45°C |
| Operating Humidity | 10-90% | 10-90% | 10-90% |
| IP Protective Index | IP65 | IP65 | IP65 |
Note: Most models feature Kinglight components and 3840Hz refresh rate. For custom specifications, additional pixel pitch options, and detailed technical requirements, please contact our technical team.
Manufacturer Profile
Professional manufacturer of high-quality LED display solutions with extensive experience in outdoor digital signage technology.
